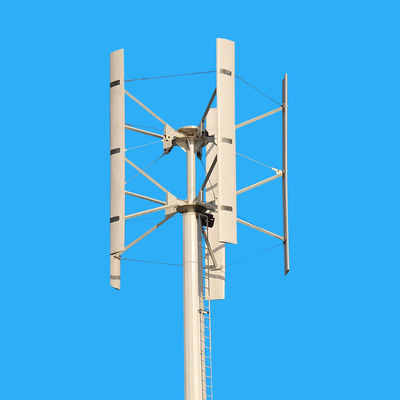

1000W 1500W 2000W 3000W 5000W 10000W 20000W Vertical Axis Silent Wind Mill /Wind Turbine

I'm Online Chat Now

1000W 1500W 2000W 3000W 5000W 10000W 20000W Vertical Axis Silent Wind Mill /Wind Turbine

1000W 1500W 2000W 3000W 5000W 10000W 20000W Vertical Axis Silent Wind Mill /Wind Turbine
1000W 1500W 2000W 3000W 5000W 10000W 20000W Vertical Axis Silent Wind Mill /Wind Turbine 1000W 1500W 2000W 3000W 5000W 10000W 20000W Vertical Axis Silent Wind Mill /Wind Turbine 1000W 1500W 2000W 3000W 5000W 10000W 20000W Vertical Axis Silent Wind Mill /Wind Turbine 1000W 1500W 2000W 3000W 5000W 10000W 20000W Vertical Axis Silent Wind Mill /Wind Turbine

Large Image :  1000W 1500W 2000W 3000W 5000W 10000W 20000W Vertical Axis Silent Wind Mill /Wind Turbine

Product Details:

Place of Origin: China
Brand Name: AP
Certification: CE
Model Number: AP-800H AP-1000H AP-1500H AP-2000H AP-3000H AP-5000H AP-10000H AP-20000H

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000PCS
Detailed Product Description
Blades Material: Aluminum Alloy

Model AP-800H AP-1000H AP-1500H AP-2000H AP-3000H AP-5000H AP-10000H AP-20000H
Rated power 800W 1kW 2kW 2kW 3kW 5kW 10kW 20kW
Maximum power 530W 1.2kW 2kW 2.2kW 3.5kW 5.5kW 12kW 23kW
Rated voltage 48V 48V 48V/96V 48V/96V 96V/120V 120V/220V 360V 360V
Start up wind speed 2m/s 2m/s 2m/s 2m/s 2m/s 2m/s 2.5m/s 2.5m/s
Rated wind speed 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s
Survival wind speed 35m/s 35m/s 35m/s 35m/s 35m/s 35m/s 35m/s 35m/s
Wheel diameter 2m 2.2m 2.55m 2.55m 2.85m 3.6m 5.8m 7.6m
Wheel height 2.2m 2.4m 2.8m 3m/2.6m 3.5m/3m 4.5m/4m 8m/6m 10m/9m
Blades number 5
Blades material Aluminum alloy Glass fiber Aluminum alloy
Generator Aluminum alloy
Control system Three phase permanent magnet ac generator/ maglev generator
Speed regulation Electromagnet
Working temperature -40℃~80
