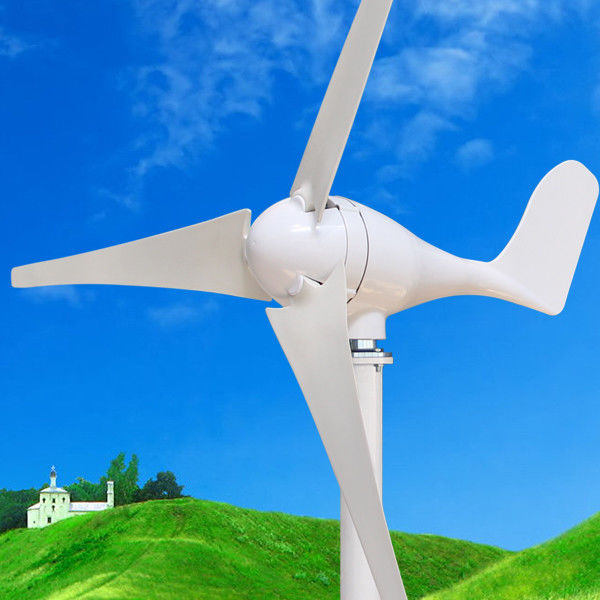

100W 200W 300W 400W 12V/24V Mini Wind Turbine Generator S Model

I'm Online Chat Now

100W 200W 300W 400W 12V/24V Mini Wind Turbine Generator S Model

100W 200W 300W 400W 12V/24V Mini Wind Turbine Generator S Model
100W 200W 300W 400W 12V/24V Mini Wind Turbine Generator S Model 100W 200W 300W 400W 12V/24V Mini Wind Turbine Generator S Model 100W 200W 300W 400W 12V/24V Mini Wind Turbine Generator S Model 100W 200W 300W 400W 12V/24V Mini Wind Turbine Generator S Model

Large Image :  100W 200W 300W 400W 12V/24V Mini Wind Turbine Generator S Model

Product Details:

Place of Origin: China
Brand Name: AP
Model Number: AP-100S AP-200S AP-300S AP-400S

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000PCS
Detailed Product Description
Blades Material: Nylon Fiber

Model AP-100S AP-200S AP-300S AP-400S
Rated power 100W 200W 300W 400W
Maximum power 130W 220W 310W 410W
Rated voltage 12V/24V 12V/24V 12V/24V 24V
Start up wind speed 2.0m/s 2.0m/s 2.0m/s 2.0m/s
Rated wind speed 10m/s 11.5m/s 13m/s 13m/s
Survival wind speed 55m/s 55m/s 50m/s 50m/s
Top net weight 6kg 6.2kg 6.5kg 6.8kg
Wheel diameter 1.2m 1.3m 1.35m 1.4m
Blades number 3-5 PCS
Blades material Nylon fiber
Generator Three phase permanent magnet ac generator
Magnetic steel NdFeB
Generator case Die-casting aluminum
Control system Electromagnet
Speed regulation Automatically adjust windward
Working temperature -40℃~80℃
