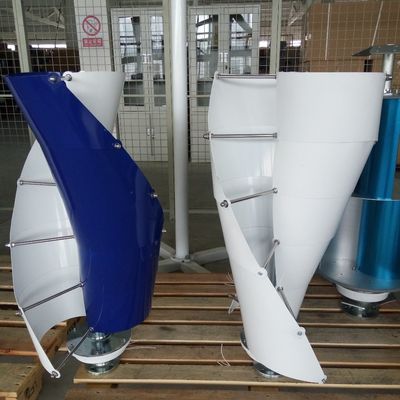

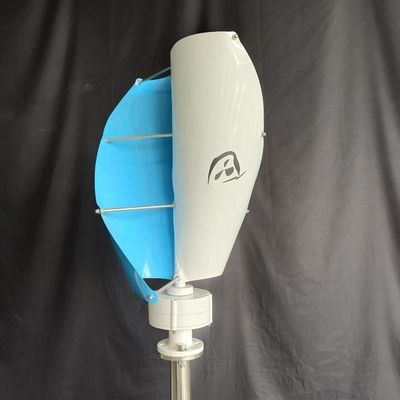

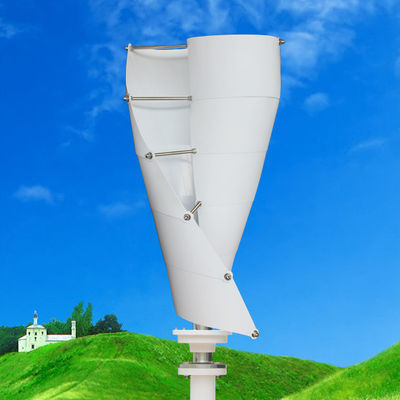

12V/24V 100W/200W/300W/400W Low Rpm Vertical Axis Wind Power Generator SV Model

I'm Online Chat Now

12V/24V 100W/200W/300W/400W Low Rpm Vertical Axis Wind Power Generator SV Model

12V/24V 100W/200W/300W/400W Low Rpm Vertical Axis Wind Power Generator  SV Model
12V/24V 100W/200W/300W/400W Low Rpm Vertical Axis Wind Power Generator  SV Model 12V/24V 100W/200W/300W/400W Low Rpm Vertical Axis Wind Power Generator  SV Model 12V/24V 100W/200W/300W/400W Low Rpm Vertical Axis Wind Power Generator  SV Model 12V/24V 100W/200W/300W/400W Low Rpm Vertical Axis Wind Power Generator  SV Model

Large Image :  12V/24V 100W/200W/300W/400W Low Rpm Vertical Axis Wind Power Generator SV Model

Product Details:

Place of Origin: China
Brand Name: AP
Certification: CE
Model Number: AP-100SV AP-200SV AP-300SV AP-400SV

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000PCS
Detailed Product Description
Blades Material: Aluminum Alloy

Model AP-100SV AP-200SV AP-300SV AP-400SV
Rated power 100W 200W 300W 400W
Maximum power 130W 220W 310W 410W
Rated voltage 12V/24V 12V/24V 12V/24V 12V/24V
Start up wind speed 1.5m/s 1.5m/s 2m/s 2m/s
Rated wind speed 11m/s 11m/s 11m/s 11m/s
Survival wind speed 45m/s 45m/s 45m/s 45m/s
Top net weight 13.5kg 17kg 19kg 21kg
Wheel diameter 0.46m 0.46m 0.54m 0.54m
Blades number 10 12 8 8
Blades material Aluminum alloy
Generator Three phase permanent magnet ac generator/ maglev generator
Control system Electromagnet
Speed regulation Automatically windward
Working temperature -40℃~80℃
