Product Details:

Place of Origin: China
Brand Name: APS
Certification: CE
Model Number: AP-DN50M-4 AP-DN80M-5

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: T/T, L/C, D/A, D/P, T/T
Supply Ability: 10000PCS
Detailed Product Description

 THERMOSTATIC MIXING VALVE WITH CHECK VALVE:



DN32-DN100 thermostatic valve has no built-in check valve;

Inconsistent hot and cold water pressures, check valves should be installed on the side with low pressure;
If you can't judge which side the pressure is low, install a check valve on both sides;
If the cold water is not pressured tap water, a booster pump is also required at the cold water end.

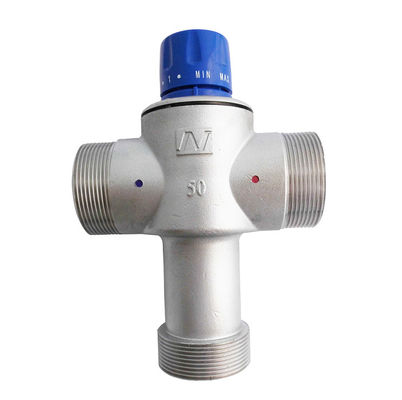

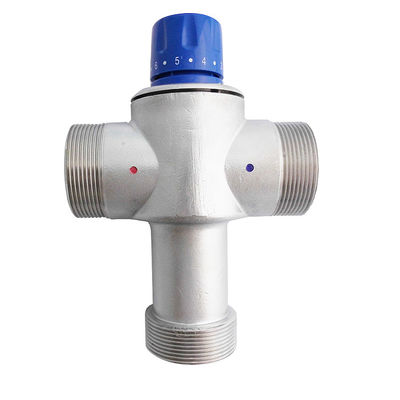

Model AP-DN50M-4
Body: Stainless steel
Shutter: PPO
Springs: Stainless steel
Seals: EPDM
Temperature setting range: 35-45 C or 50--60C
Hot water inlet temperature range Below 100 ºC
Cold water inlet temperature range 5-29 ºC
Temperature stability: +/-3 ºC
Hydrostatic pressure 10bar
Max working pressure(dynamic): 5bar
Working pressure: 0.03-1Mpa
Ideal working pressure 0.1-0.5Mpa
Connections: 2",M
Flow rate (1 kg pressure) 250 L/min

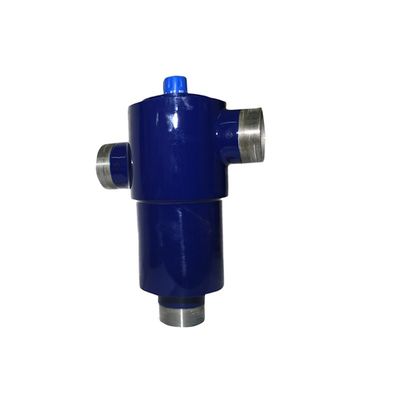

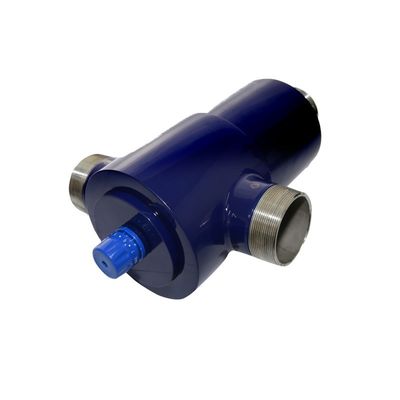

Model AP-DN80M-5
Ideal working pressure 0.1-0.5Mpa
Cold water inlet temp. 4-29 ℃
Hot water inlet temp. 50-95 ℃
Mixed water outlet temp. 40-50 ℃ customized
Flow rate (1 bar pressure drop) 833.3L/min
Temp accuracy ±2℃
Body material Stainless steel
Thread G 3″ Male Thread
Standard QB2806-2017
