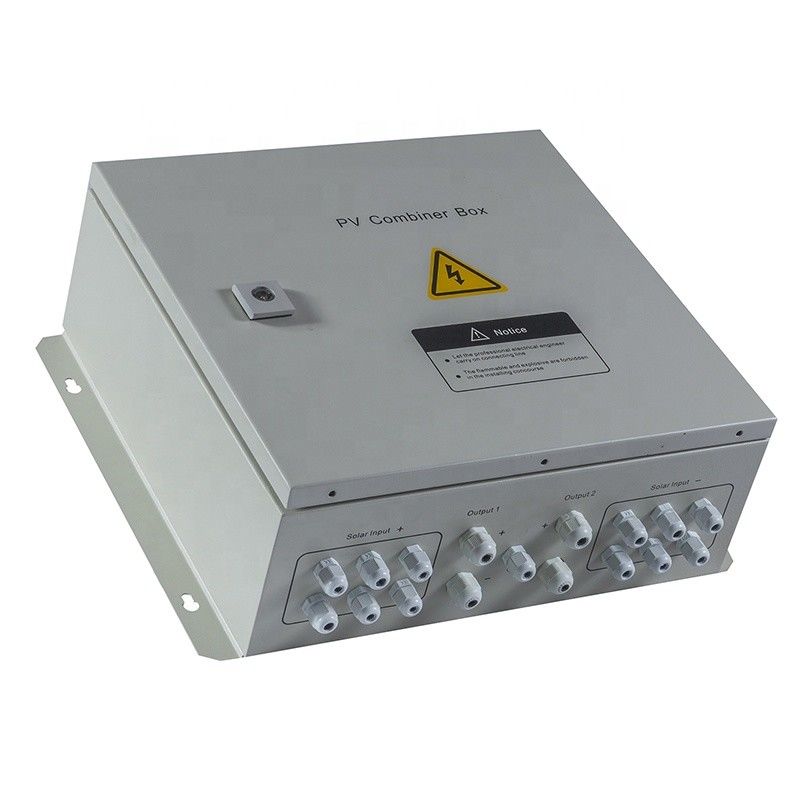

PV combiner box in on grid solar system



1. In the solar power system, in order to decrease the connecting line, easy maintenance, reduce losses, optimize system structure, improve the safety and reliability of items, the PV combiner box is usually in need between the solar panels and inverter.

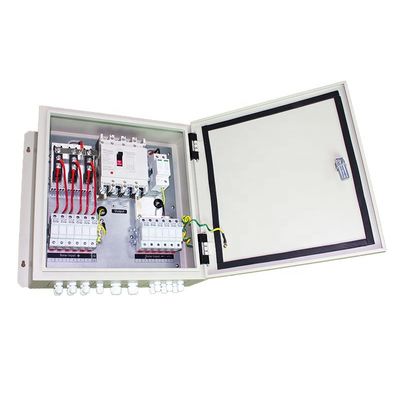

2.Except the PV junction function, the pc combiner box should also have reverse current prevention, over-current protection, over-voltage protection, lightning protection etc a series of perfect protection functions, meanwhile, checking the running state, current, voltage and power after junction, arrester state, collection of DC circuit breaker state and Arc detection,leakage detection(optional) and so on.

3.The PV combiner box we manufacture is equipped with all the functions mentioned above, configuration with on grid/off grid solar inverter to make up a complete set of solar power system.

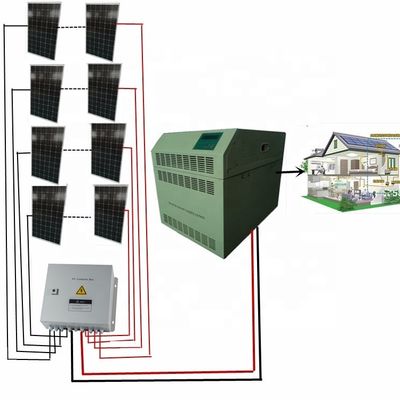

4. When choose the pv combiner box, based on the input dc voltage range and output power of inverter, certain qty of panels will be connected in series as a string, certain strings in parallel will connect to the PV combiner box for junction, via control of circuit breaker and protection of arrester, then feed to the inverter.



Model H4T H6T H8T H10T
Input data
Number of PV inputs 4 6 8 10
Max. current of each PV input array 10A
Fuse for each PV input array 10A
Wire number of each PV input array PG7, 4mm2
Output data
Number of outputs 1 2
Maximum output current 40A 60A in all (30A/each output) 80A in all (40A/each output) 100A in all (50A/each output)
Wire number of each output PG16, 8mm2 for each output PG16, 10mm2 for each output PG16, 10mm2 for each output PG16, 12mm2 for each output
Maximum output voltage 800V DC
DC output circuit breaker Available
Other data
Protection IP65
Temperature -30 to 60°C
Net/gross weight (kg) 5.3/9.3 8.4/12.9 9.5/14.3 10.8/15.6
Dimensions 340*300*140mm 360*340*145mm 400*420*145mm
Cooling method Natural cooling
Surge protection Available
Ground wire number ≥ 6mm2
