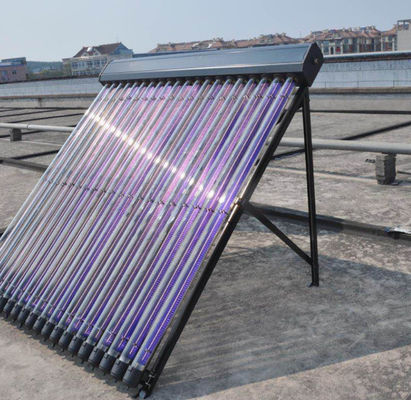

Best Efficiency Supper Heat Conduction Glass Metal Solar Collector Series---Heat Pipe Model

Best Efficiency Supper Heat Conduction Glass Metal Solar Collector Series---Heat Pipe Model
Best Efficiency Supper Heat Conduction Glass Metal Solar Collector Series---Heat Pipe Model Best Efficiency Supper Heat Conduction Glass Metal Solar Collector Series---Heat Pipe Model Best Efficiency Supper Heat Conduction Glass Metal Solar Collector Series---Heat Pipe Model Best Efficiency Supper Heat Conduction Glass Metal Solar Collector Series---Heat Pipe Model

Large Image :  Best Efficiency Supper Heat Conduction Glass Metal Solar Collector Series---Heat Pipe Model

Product Details:

Place of Origin: China
Brand Name: APS
Certification: CE
Model Number: APMG-HP-SC2100/70-10 APMG-HP-SC2100/70-20 APMG-HP-SC2100/70-30

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Contact Now
Detailed Product Description
Material: Steel, Glass And PUF

Supper Heat Conduction Glass Metal Solar Collector Series

Tech Data:

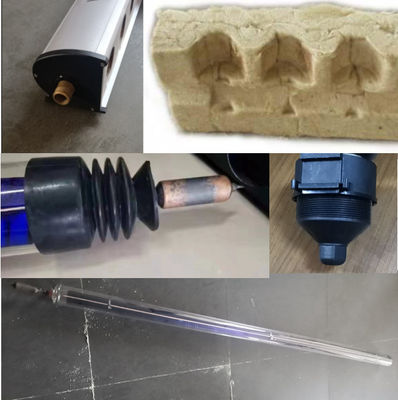

1.Manifold casing material: Aluminum Alloy; Insulation: Rock wool; Screw 1’’; Tube Distance 90MM

2.Header pipe material: Copper 1.0MM thickness; 38MM Dia

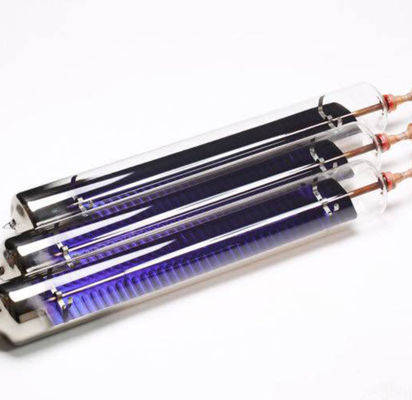

3.Supper Heat Conduction Metal-Glass; Length 2100MM;Diameter,70MM; Condenser,24MM Dia,100MM Length.

4.TUBE DUST COVER; TUBE LOCK.

5. Frame material: SS201; Thickness,1.2MM; No Back Legs;Thermal Glue





Model of Quantity Packing
Manifold Tubes Volume
APMG-HP-SC2100/70-10 58-1800 10 No. 0.236CBM
APMG-HP-SC2100/70-20 58-1800 20 No. 0.422CBM
APMG-HP-SC2100/70-30 58-1800 20 No. 0.622CBM

Contact Details
Shanghai APS Eco-tech Co., Ltd

Contact Person: Mr. Seeker Xu

Tel: 18857393260

Fax: 86-182-5138-6509
