DC Pump WS123 WS246 WS249 Brushless Circulation Pump, Submersible Pump, pressurized booster 0-110 Degrees Celsius

I'm Online Chat Now

DC Pump WS123 WS246 WS249 Brushless Circulation Pump, Submersible Pump, pressurized booster 0-110 Degrees Celsius

DC Pump WS123 WS246 WS249 Brushless Circulation Pump, Submersible Pump, pressurized booster 0-110 Degrees Celsius
DC Pump WS123 WS246 WS249 Brushless Circulation Pump, Submersible Pump, pressurized booster 0-110 Degrees Celsius DC Pump WS123 WS246 WS249 Brushless Circulation Pump, Submersible Pump, pressurized booster 0-110 Degrees Celsius DC Pump WS123 WS246 WS249 Brushless Circulation Pump, Submersible Pump, pressurized booster 0-110 Degrees Celsius DC Pump WS123 WS246 WS249 Brushless Circulation Pump, Submersible Pump, pressurized booster 0-110 Degrees Celsius

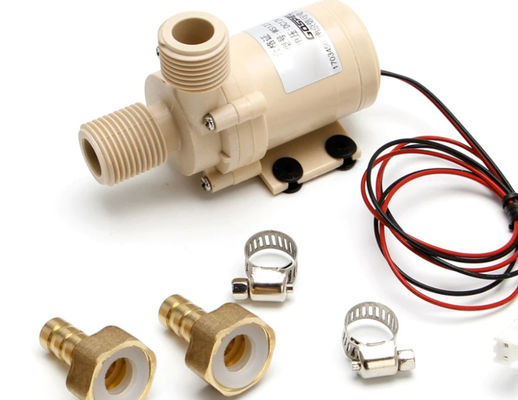

Large Image :  DC Pump WS123 WS246 WS249 Brushless Circulation Pump, Submersible Pump, pressurized booster 0-110 Degrees Celsius

Product Details:

Place of Origin: China
Brand Name: APS
Certification: CE
Model Number: DC Pump-WS123 DC Pump-WS246 DCPump-WS249

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: T/T, L/C, D/A, D/P, T/T
Supply Ability: 10000PCS
Detailed Product Description

Product Description:



This is an electric powered pump with low power consumption.



Application:

Refrigeration system, water circulation system, solar collector cycle, solar temperature difference cycle, water heater water pipe circulation (realizing hot water), hot and cold water pressurization, water dispenser, boiling water transportation, solar floor heating, mattress, floor heating, fountain and so on.



Advantage:

All material meet the drink water standard. Lead free, non-toxic, no rust, with CE certification.Using polytetrafluoroethylene inner,electronic component commutation,High performance resistant porcelain shaft and ceramic sleeve motor, epoxy potting. Temperature resistance up to 130 degree Celsius.

Stable and reliable performance, long life:

Factroy have tested that Pump works Continuously through 100 °C boiling water, 24 hours a day, can run for 4.5 years.

NOTE: Please make sure do not run the pump dry. Also it is not Self-priming pump.



Model Size In and Outlet Size Temperature Range Life Span Weight Voltage Current Flow Rate Lift
Pump-WS123 92MMX63MM 1/2’’Male 0 ~ 110℃ 40000Hours 185G 92MMX63MM 0.7A(Max) 8L/min(max) 3M(max)
Pump-WS246 92MMX63MM 1/2’’Male 0 ~ 110℃ 40000Hours 185G 24V(max) 0.8A (max) 12L/min (max) 6M (max)
Pump-WS249 92MMX63MM 1/2’’ Male 0 ~ 110℃ 40000Hours 185G 24V(max) 1.8A (max) 20L/min (max) 9M (max)

Notes.

1.No Lead; No Toxic; No Rust, Food Grade.

2.Water-proof; Under Water

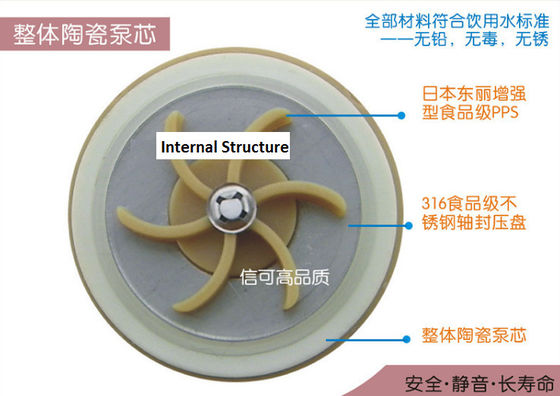

3. Ceramic Pump Core.

4. Min Order 20 No.
