Hotel, Hospital Large Project Solar Heating System---Vacuum Tube Model

Hotel, Hospital Large Project  Solar Heating System---Vacuum Tube Model
Hotel, Hospital Large Project  Solar Heating System---Vacuum Tube Model Hotel, Hospital Large Project  Solar Heating System---Vacuum Tube Model Hotel, Hospital Large Project  Solar Heating System---Vacuum Tube Model Hotel, Hospital Large Project  Solar Heating System---Vacuum Tube Model

Large Image :  Hotel, Hospital Large Project Solar Heating System---Vacuum Tube Model

Product Details:

Place of Origin: China
Brand Name: APS
Certification: CE
Model Number: APMGS-1800/58-25 APMGS-1800/58-50 APMSS-1800/58-25 APMSS-1800/58-50

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Material: Steel, Glass And PUF

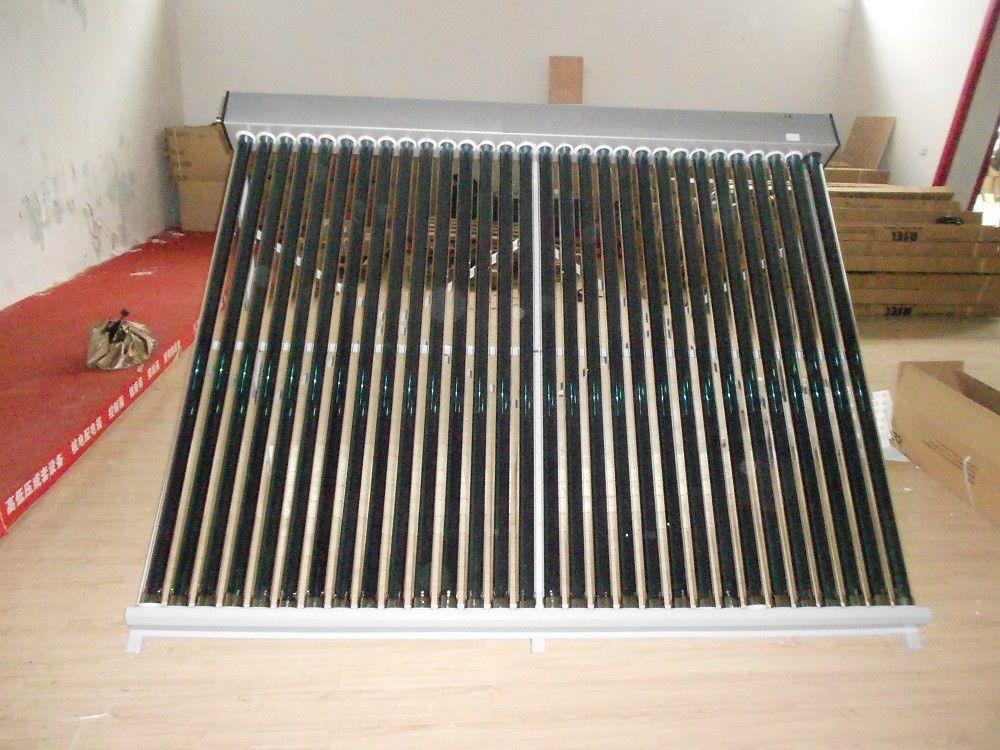

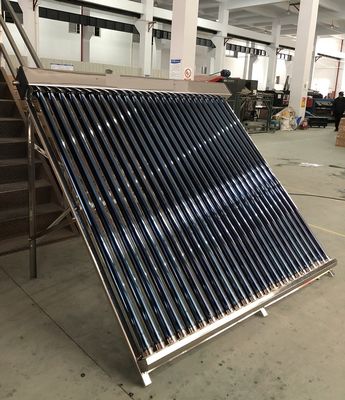

All Vacuum Tubes Solar Collector



Generally, there are two patterns: the pattern of horizontal composition and the pattern of vertical composition.



Solar Collector Tech Data:

1. Inner Manifold: Stainless Steel, SUS304-2B, SS316L; Thickness, 0.41-0.51MM.

2. Outer Manifold: Color Steel or Stainless steel; Thickness, 0.40MM.

3. Insulation layer: Polyurethane foam; Thickness, 30-40MM.

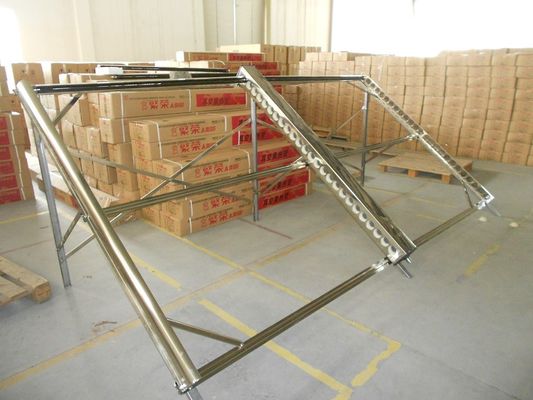

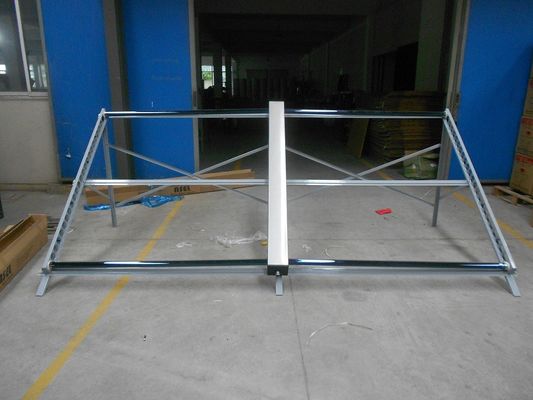

4. Frame: Galvanized Steel; Aluminum Alloy; Stainless Steel.

5. Vacuum tubes: ALN/AIN-SS/CU layer; 47-1500 OR 58-1800.

6. Fame Angle can modified according to the customers’ requirement.

7. Manifold Shape and Size can be modified according to the customers’ requirement.



Model of Support Aperture Loading
Solar Water Heater Capacity Area 40HQ
APMGS-1800/58-25 250L 2.326M2 189 No.
APMGS-1800/58-50 500L 4.652M2 103 No.
APMSS-1800/58-25 250L 2.326M2 189 No.
APMSS-1800/58-50 500L 4.652M2 103 No.
