Product Description

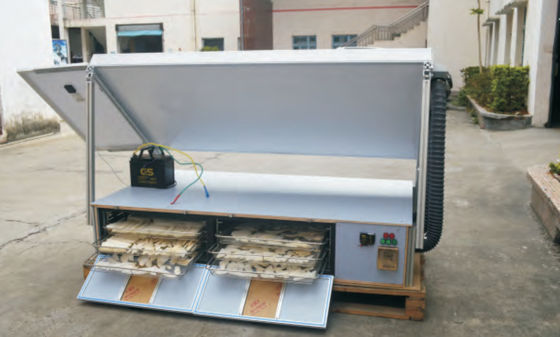

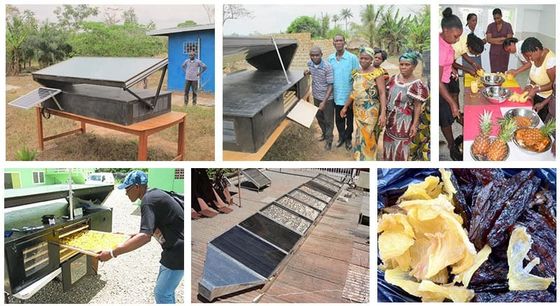

Solar small family dryer is a special solar system for food and fruit dry, cold air into Solar air collector by heating, control system push fan transport hot air from solar air collector to food dry box, system operation and control power form solar PV panel all,. it is widely used in dehydrate field for vegetables, melons and fruit, bread and so on.This solar dryer is intended for the small landholder or a family. With a capacity of 40 - 60 kg of sliced wet fruit or vegetables, depending on type of fruit and numerous other factors , this dryer is ideal for high-quality natural preservation in a micro-enterprise setting. multiple units provide a significant commercial volume at a combined cost which remains economical and substantially lower than large commercial solar dryers.
Features
The Small-Farm model has three main features which enhance drying speed and efficiency. This compact configuration provides for:
• Horizontal airflow across the food is proven superior versus vertical airflow.
• Solar air collector tilts to accommodate any latitude or season.
• Entire dryer can swivel on a fixed table so operator can rotate unit to track the sun.
Large commercial dryers, or their solar air collectors, are unable to be rotated during the day to track the sun. This limitation also favors multiple small units.
Advantage of solar air collector

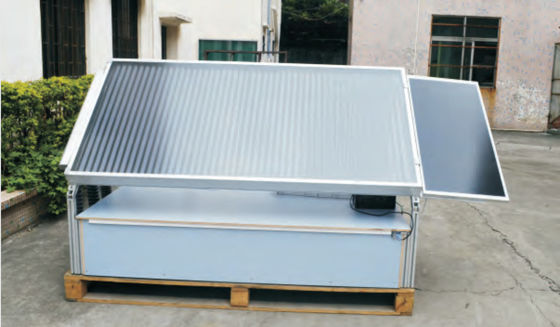

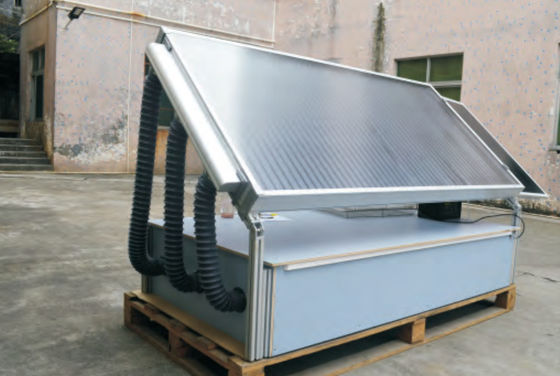

Solar air collector is a specific collector developed by Dryfree solar from 2009.Different from the traditional solar collector
using the water as the heat transfer fluid, solar air collector heats the air directly by using the air as heat transfer medium.
Air drawn through the system absorbs the collector’s heating,rising in temperature by as much as required temperature, and then
the warm air returns to the drying chamber for the drying operation, or passes into the living room for heating. Solar air
collector can be widely used in industrial and agricultural drying and spacing heating, etc.
Technical datasheet of solar farm dryer |
|
Qty. of trays: |
16 pcs stainless steel |
Size of tray: |
640*460mm |
Drying area: |
total tray surface = approx 5 sq.M |
Cabinet construction: |
Painted plywood with steel supports and top |
PhotoVoltaic Panel : |
100 Watts with charge controller |
Battery : |
deep cycle automotive type (optional) |
Fan : |
5 DC fans,12V, 0.65A |
Glazing Material : |
tempered / textured solar glass |
Solar collector : |
corrugated and painted steel with aluminum frame |
Solar collector adjustable angle range: |
30 to 40 degrees |
Size: |
1050*2500*1060(H) |
Packing size: |
2 packages, 1900*1100*500MM, 2040*110*1150MM ; 2CBM; 220kg |
