Lowest Cost Heat Pipe Solar Thermal Collector---Heat Pipe Model

Lowest Cost Heat Pipe Solar Thermal Collector---Heat Pipe Model
Lowest Cost Heat Pipe Solar Thermal Collector---Heat Pipe Model Lowest Cost Heat Pipe Solar Thermal Collector---Heat Pipe Model Lowest Cost Heat Pipe Solar Thermal Collector---Heat Pipe Model Lowest Cost Heat Pipe Solar Thermal Collector---Heat Pipe Model

Large Image :  Lowest Cost Heat Pipe Solar Thermal Collector---Heat Pipe Model

Product Details:

Place of Origin: China
Brand Name: APS
Certification: CE
Model Number: APSS-HP-SC1800/58-10 APSS-HP-SC1800/58-15 APSS-HP-SC1800/58-20 APSS-HP-SC1800/58-30

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Material: Steel, Glass And PUF

Heat Pipe Solar Collector





Tech Data:

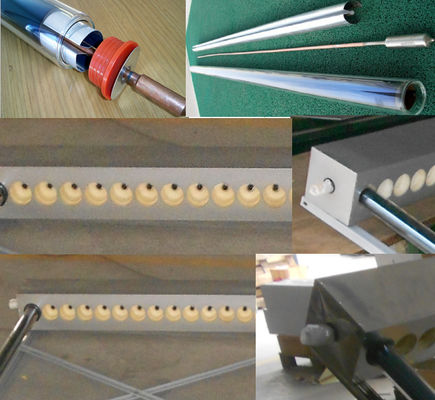

1. Manifold Casing Materials:Galvanized Steel,  Stainless Steel;Sliver or Black;Insulation: PUF.

2. Header Pipe Materials:Copper TU2, 1.0MM Thickness and 35MM Diameter.

3. Vacuum Tube Heat Pipe:Copper, TU2; 8MM Dia; 1700MM len.;Condenser, Dia,14MM; Single or Double Fins.

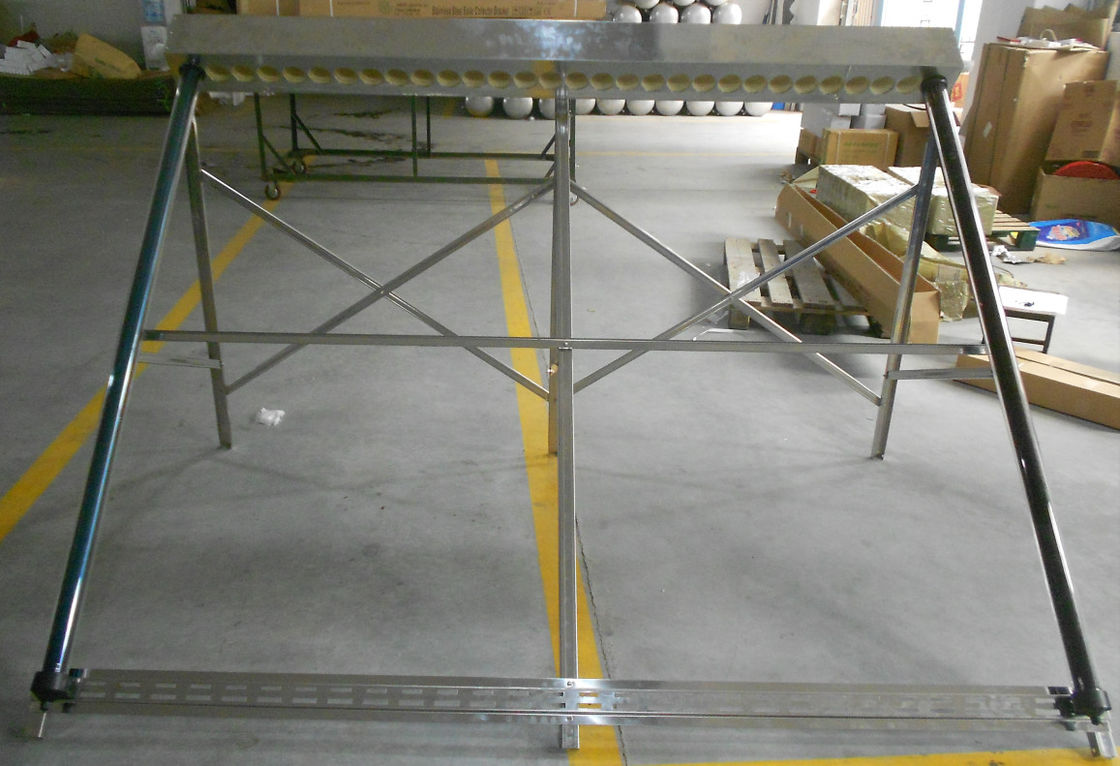

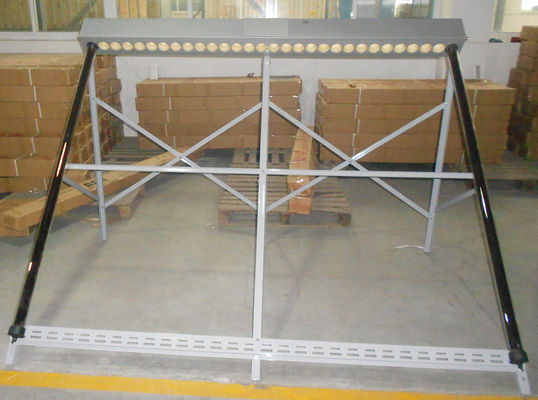

4. Frame material: Galvanized Steel, Stainless Steel.

5. Fame Angle can modified according to the customers’ requirement.

6. Manifold Shape and Size can be modified according to the customers’ requirement.





Characteristic:

The heat pipe solar collector is connected with storage tank, electric control device, hot water mix unit and fittings for circulation and installation. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminum fins. The liquid in the heat pipe changes into vapour which rises to the condenser. The heat then passes through the heat ex-changer and The vapor becomes liquid, returning to the base of the heat pipe. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.



Model:



Model of Support Aperture Loading
Solar Water Heater Capacity Area 40HQ
APAL-HP-SC1800/58-10 100L 0.931M2 425 No.
APAL-HP-SC1800/58-15 150L 1.395M2 314 No.
APAL-HP-SC1800/58-20 200L 1.861M2 232 No.
APAL-HP-SC1800/58-30 300L 2.791M2 166 No.
