Detailed Product Description

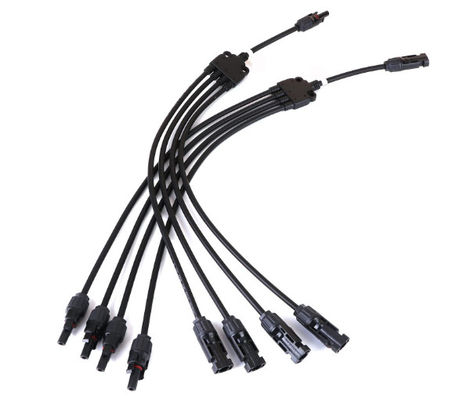

A.MC4 Solar Style Branch Panel Cable Connectors Y Type 4 in 1



These are Y Type(1 to 4) MC4 Style Branch Connector Cables which are approved by CE, TUV, ROHS. Compatible with all MC4 Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, typically used in parallel applications.

1 Pair of 4 IN 1 Y Type MC4 Solar Panel Cable Connectors: 1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM)

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

Compatible with PV cables with different insulation diameters

Resistance of extra high & low temperature and fireproof



Technical Data:

Maximum Current: 30A

Maximum voltage: DC 1000V

Contact resistance:≤5mmΩ

Temperature: -40 ℃ ~ +90 ℃

Waterproof Grade: IP67

Flame class: UL94-V0

Connecting cable specifications: 4mm2/12AWG

Test voltage: 6.6KV (50Hz, 1min)

Metal materials: copper tin plated

Insulation material: PPO

Lock mode: Self-locking

Security Level: Class ‖

Insertion force:≤50N

Withdrawal force:≥50N





B.MC4 Extension Cable Pair Solar Plug Socket



Extend the distance between your solar panels and solar charge controller controller. TUV and UL type photovoltaic cable is designed for outdoor use and is moisture, UV and corrosion resistant. MC4 male and female connectors installed at each end. Sold as a pair for both positive and negative sides. Made with 12/10 AWG cable, 4 sqm and 6 sqm solar wire for TUV Size



Data Sheet:

Solar Cable Lengh: 2M, 5M, 10M,20M…

Solar cable size: 4.0 sqm 12AWG, 6.0 sqm 10AWG

Includes: 1 male MC4 Plug to MC4 female socket extention cables

Maximum Voltage: 600V

Insulation Material: XLPE

Max current: 30Amp

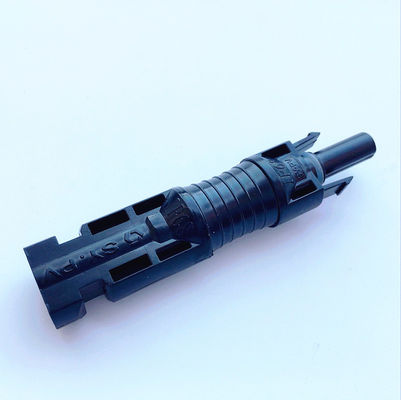

C. MC4 Fuse Connector



This MC4 Connector compatible fuse holder + fuse is designed to provide over-current protection for solar arrays.It’s waterproof fuse holder and features MC4 connector.The use of a fuse can protect your solar array from unnecessary damage to solar panels from an over-current, 10A to 30A based on your needs



Features:

1.Compatible with MC4 Solar Panel Connectors

2.IP67 Waterproof Degree and dust proof

3.Fuse replacement is quick and easy. Simply unscrew the MC4 Fuse Holder to remove and replace inline fuse



Technical Data:

Maximum Current: 30A

Maximum voltage: UL 600V/TUV 1000V

Contact resistance:≤5mmΩ

Temperature: -40 ℃ ~ +90 ℃

Waterproof Grade: IP67

Flame class: UL94-V0

Connecting cable specifications: 4mm2/12AWG 6mm2/10AWG

Test voltage: 6.6KV (50Hz, 1min)

Metal materials: copper tin plated

Insulation material: PPO

Lock mode: Self-locking

Security Level: Class ‖

Insertion force:≤50N

Withdrawal force:≥50N

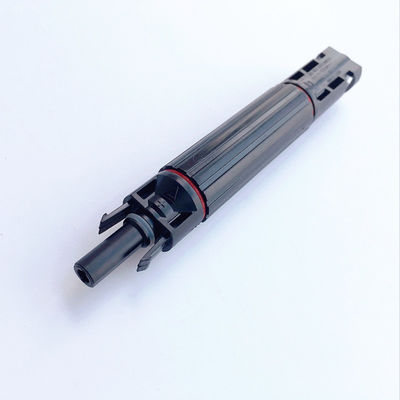

D.MC4 Diode Connector



This MC4 diode connector contains a high grade blocking diode 10/15/20AMP capacity intended to protect each solar panels from current backflow, compatible with MC4 Type plug, used to protect solar panels in preserving it’s life expectancy



Features:

Easy to install

-Water proof IP67

-TUV Stand

-Max current 20Amp

-Using life 25 years



Technical Data:

Maximum Current: 20A

Maximum voltage: UL 600V/TUV 1000V

Contact resistance:≤5mmΩ

Temperature: -40 ℃ ~ +90 ℃

Waterproof Grade: IP67

Flame class: UL94-V0

Connecting cable specifications: 4mm2/12AWG 6mm2/10AWG

Test voltage: 6.6KV (50Hz, 1min)

Metal materials: copper tin plated

Insulation material: PPO

Lock mode: Self-locking

Security Level: Class ‖

Insertion force:≤50N

Withdrawal force:≥50N
