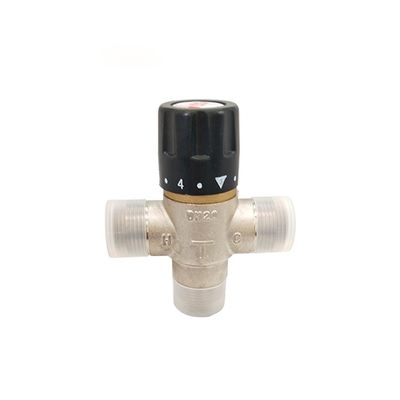

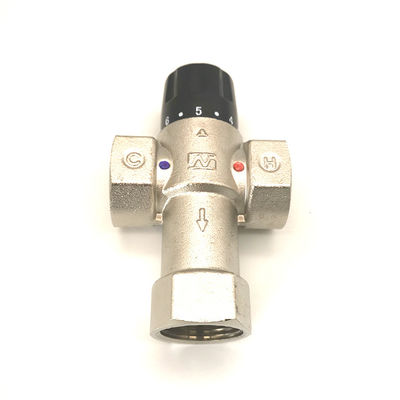

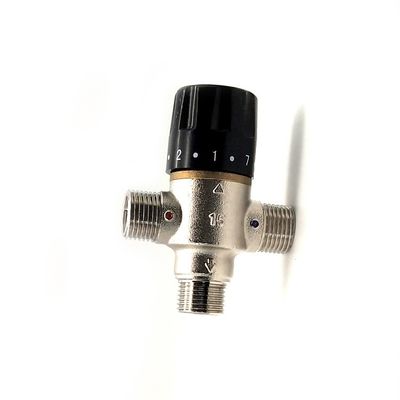

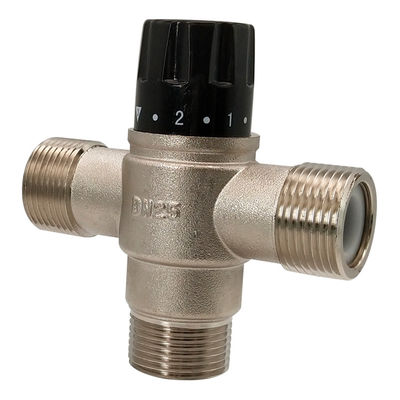

THERMOSTATIC MIXING VALVE WITH CHECK VALVE:
Model | AP-DN15M-2 | AP-DN20M-2 | AP-DN25M-2 | AP-DN25F-2 |
deal working pressure | 0.1-0.5Mpa | 0.1-0.5Mpa | 0.1-0.5Mpa | 0.1-0.5Mpa |
Cold water inlet temp. | 4-29 ℃ | 4-29 ℃ | 4-29 ℃ | 4-29 ℃ |
Hot water inlet temp. | 50-95 ℃ | 50-95 ℃ | 50-95 ℃ | 50-95 ℃ |
Mixed water outlet temp. | 35-45 ℃ customized | 35-55 ºC customized | 35-55 ºC customized | 35-55 ºC customized |
Flow | 11.67L/Min 0.1Mpa pressure difference | 26.67 L/min | 38.3 L/min | 26.67 L/min |
Temp accuracy | ±2℃ | ±2℃ | ±2℃ | ±2℃ |
Body material | Nickel plated Brass | Nickel plated Brass | Nickel plated Brass | Nickel plated Brass |
Thread | G 1/2″Male thread | G 3/4″ Male thread | G 1” male thread | G 3/4″ Female thread |
Standard | QB2806-2017 | QB2806-2017 | QB2806-2017 | QB2806-2017 |
Net weight | 0.3 KGS | 0.47 KGS | 0.594 KGS | 0.55 KGS |
Gross weight | 0.352 KGS | 0.52KGS | 0.644 KGS | 0.65 KGS |
For wash hand basins, bidets, baths and showers in hospitals, schools, sport and leisure facilities, prisons and other publicNotes:
buildings.
001. DN15-DN25 thermostatic valve with built-in check valve;Normal water pressure can be used normally; We recommend that thermostatic valves be installed indoors;
002. Make height difference between thermostatic valve and solar energy; It is best to have a drop of 3 floors. If there is no drop of 3 floors, we recommend that customers install pumps. Remark: It can be used normally without a booster pump, and the use effect may be reduced.
