Product Details:
Payment & Shipping Terms:
|

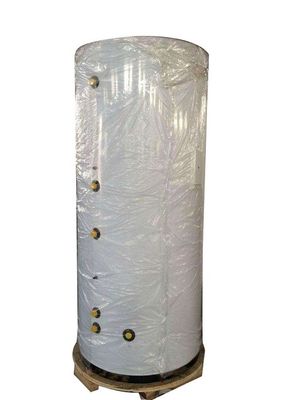

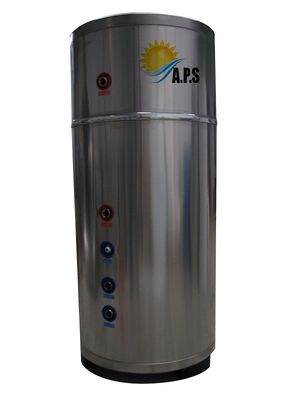

Pressure Storage Tank is used for Split Pressure Solar Water Heater, Pressure Solar Heating Project, and Heat Pump Heating Project to keep hot water warm.
Tech Data:
1. Outer Tank, Color Steel or Stainless Steel
2. Inner Tank, SUS304-2B or Enamel Tank.
3. Electric Assistant Heating: 1.5-2.5KW and Mg Rod
4. est pressure: 15bar; work pressure: 6bar; Tank Capacity from 100L-1500L.
5. Tank Capacity, Coil material, Diameter and Length can be modified according to the customer’ requirement.
Model:
A. Pressure Storage Tank for Split Solar Water Heater Stainless Steel Coil Series.
Series | Dimension For Tank | Inner | Coil: SS304 | |
Model | Inner Dia | Outer Dia | Tank | Dia @ Length |
AP-PSC200L | 450MM | 550MM | 1.5MM | 12MM&15/15M |
AP-PSC300L | 480MM | 580MM | 1.5MM | 12MM&15/15M |
AP-PSC500L | 580MM | 700MM | 2.0MM | 12MM&20/25M |
AP-PSC1000L | 800MM | 1000MM | 2.5MM | 16MM&20/25M |
B.Enamel Pressure Storage Tank for Split Solar Water Heater Two Enamel-Coil Series.
Series | Dimension For Tank | Inner | Coil: Enamel | |
Model | Inner Dia | Outer Dia | Tank | Dia @ Length |
AP-PEC200L | 440MM | 540MM | 2.0MM | 32MM&10/10M |
AP-PEC300L | 540MM | 650MM | 2.0MM | 32MM&14/14M |
AP-PEC400L | 600MM | 700MM | 2.5MM | 32MM&16/16M |
AP-PEC500L | 600MM | 700MM | 2.5MM | 32MM&16/16M |
