Product Details:

Place of Origin: China
Brand Name: APS
Certification: CE
Model Number: Concealed Shower Set AP-CS-001--012

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: T/T, L/C, D/A, D/P, T/T
Supply Ability: 10000PCS
Detailed Product Description

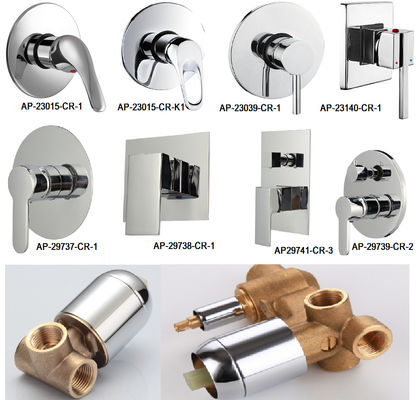

A. Concealed Divert-er Bathroom Shower Valve

1. Brass valve core material.

2. Brass tap, certificated cartridge.
3. Single handle with divert-er.
4. 0.6-0.8MPA (8-10bar, no leakage).
5. 144 - 200 hours NSS testing.
6. 500,000 times life cycle testing.

7. Valve's plastic shell is optional.

8. Customized logo, package available.



Product name Sanitary ware chrome square single handle bathroom rain shower set
Item No. FA-CS04
Top gush shape Round/Square(customized)
Material Brass main body and zinc alloy handle (customized)
Material Analysis Cu≥ 59%
Thickness of chrome plating Nickel>8um Chrome>0.2um
Water flow Bath/Shower mixer ≥ 18L/min
Operating pressure 0.05Mpa-0.8Mpa
Certificated CE, ISO9001:2000
Recommend pressure 0.1Mpa-0.5Mpa,if>0.5Mpa Installation of a flow reducer is recommended
Cold water temperature 4℃-29℃
Hot water temperature 50℃-80℃
Temperature range 20℃-50℃
Cold water supply failure test Within 5 seconds after cold water supply fails,outflow rate automatically drops to
Life test CSA B125-98 ASSE 1016(=100,000 cycles)
MOQ 300 PCS
Outflow temperature When inlet water temperature or pressure varies, outlet water temperature change
auto-adjusting sensitivity will be less than ±2℃
Number of Handles Double handle
Quality Guarantee 5 Year quality guarantee
Customized OEM & ODM are welcomed
