12V/24V 100W/200W/300W Small Vertical Wind Turbine /Wind Power Generator Q2 Model

12V/24V 100W/200W/300W Small Vertical Wind Turbine /Wind Power Generator Q2 Model
12V/24V 100W/200W/300W Small Vertical Wind Turbine /Wind Power Generator Q2 Model 12V/24V 100W/200W/300W Small Vertical Wind Turbine /Wind Power Generator Q2 Model 12V/24V 100W/200W/300W Small Vertical Wind Turbine /Wind Power Generator Q2 Model 12V/24V 100W/200W/300W Small Vertical Wind Turbine /Wind Power Generator Q2 Model

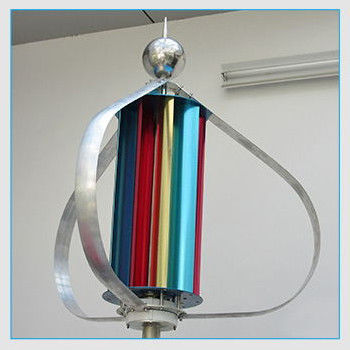

Large Image :  12V/24V 100W/200W/300W Small Vertical Wind Turbine /Wind Power Generator Q2 Model

Product Details:

Place of Origin: China
Brand Name: AP
Certification: CE
Model Number: AP-100Q2 AP-200Q2 AP-300Q2

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000PCS
Contact Now
Detailed Product Description
Blades Material: Aluminum Alloy

Model AP-100Q2 AP-200Q2 AP-300Q2
Rated power 100W 200W 300W
Maximum power 130W 220W 310W
Rated voltage 12V/24V 12V/24V 12V/24V
Start up wind speed 1.5m/s 1.5m/s 1.5m/s
Rated wind speed 10m/s 11.5m/s 13m/s
Survival wind speed 45m/s 45m/s 45m/s
Top net weight 11.5kg 12kg 12.5kg
Wheel diameter 1.1m 1.1m 1.1m
Blades number 9/12 PCS
Blades material Aluminum alloy
Generator Three phase permanent magnet ac generator/ maglev generator
Control system Electromagnet
Speed regulation Automatically windward
Working temperature -40℃～80℃
