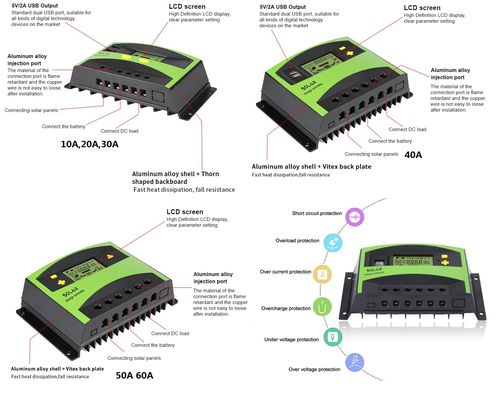

Features :
1.Double USB Socket.
2.Aluminum alloy injection port and iron back plate.
3.12V/24V Auto adapt and 48V, small size, easy to operate.
4.LCD, programing parameter.Data memory function.
5.Using PCB industrial grade chip, harsh environment adapt.

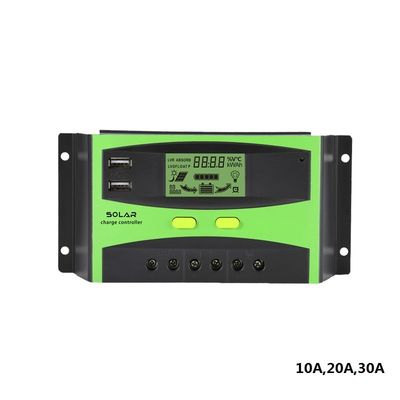

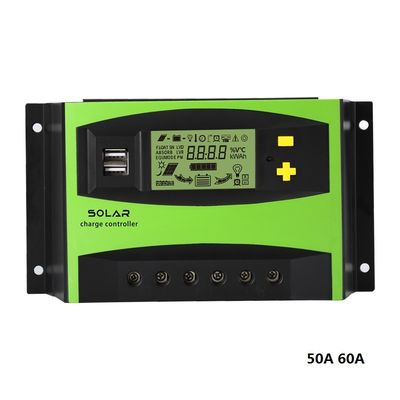

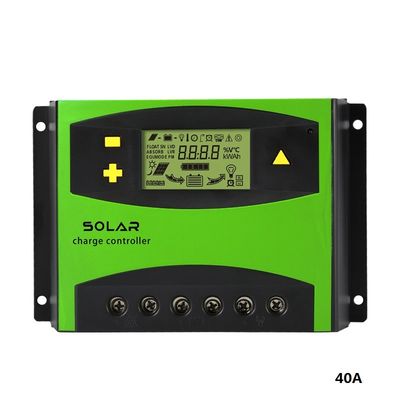

| Model | AP-LS-10A | AP-LS-20A | AP-LS-30A | AP-LS-40A | AP-LS-50A | AP-LS-60A |
| system voltage | 12V/24V(automatic switchover),or 48V | |||||
| The maximum voltage input to the solar panel | 50V(12V/24V),100V(48V) | |||||
| Loss of self | ≤13MA | |||||
| maximum charging current | 10A | 20A | 30A | 40A | 50A | 60A |
| maximum discharge current | 10A | 20A | 30A | 40A | 50A | 60A |
| LVD Low voltage protection voltage | 10.7V(10-13.8V),21.4V(20-27.6V),42.8V(40-55.2V) | |||||
| LVR Low voltage reset voltage | 12.6V(10.2-14V),25.2V(20.4-28V),50.4V(40.8-56V) | |||||
| floating charge voltage | 13.8V(13-15V),27.6V(26-30V),55.2V(52-60V) | |||||
| Battery overvoltage protection | 15V/30V/60V | |||||
| Input reverse connection protection | yes | |||||
| charging mode | PWM | |||||
| temperature compensation | -24mv/℃,-48mv/℃,-96mv/℃, relative to 12V/24V/48Vsystem | |||||
| operating temperature | -20℃-+55℃ | |||||
| Terminal scale | 28-10AWG | |||||
| waterproof rating | IP32 | |||||
| product size | 20-30A(187*90*47mm) | 40A(195*107*50mm) | 50-60A(187*122*57mm) | |||
| package size | 200*102*53mm | 210*118*59mm | 200*132*63mm | |||
| Net weight | 320g | 340g | 588g | |||
