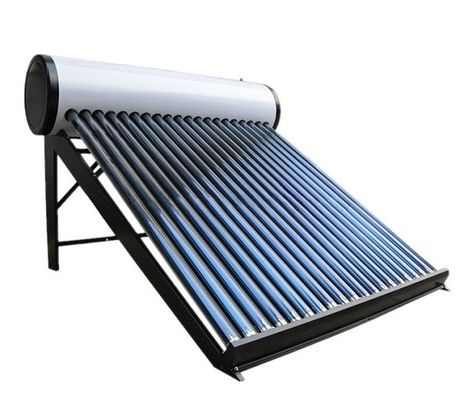

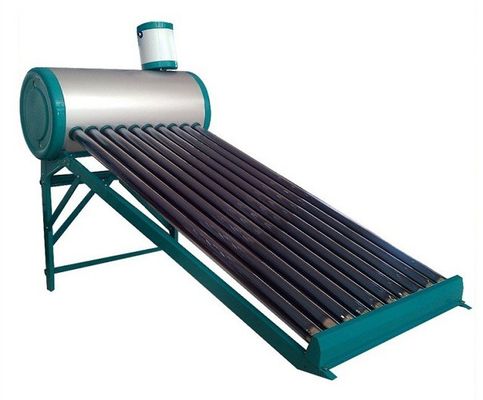

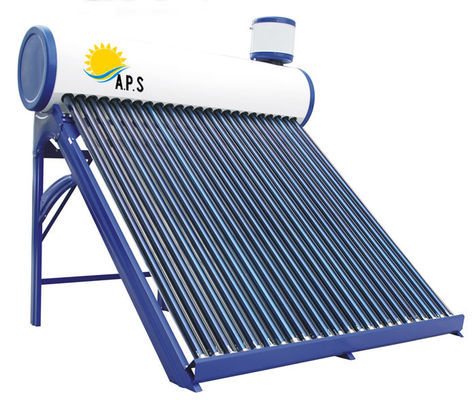

Economical All-glass Tube on Roof Compact Non-pressure Solar Water Heater Galvanized Steel & SUS304---Non-pressure Model

I'm Online Chat Now

Economical All-glass Tube on Roof Compact Non-pressure Solar Water Heater Galvanized Steel & SUS304---Non-pressure Model

Economical All-glass Tube on Roof Compact Non-pressure Solar Water Heater Galvanized Steel & SUS304---Non-pressure Model
Economical All-glass Tube on Roof Compact Non-pressure Solar Water Heater Galvanized Steel & SUS304---Non-pressure Model Economical All-glass Tube on Roof Compact Non-pressure Solar Water Heater Galvanized Steel & SUS304---Non-pressure Model Economical All-glass Tube on Roof Compact Non-pressure Solar Water Heater Galvanized Steel & SUS304---Non-pressure Model Economical All-glass Tube on Roof Compact Non-pressure Solar Water Heater Galvanized Steel & SUS304---Non-pressure Model

Large Image :  Economical All-glass Tube on Roof Compact Non-pressure Solar Water Heater Galvanized Steel & SUS304---Non-pressure Model

Product Details:

Place of Origin: China
Brand Name: APS
Certification: CE
Model Number: APGS-470-1800/58-10-N APGS-470-1800/58-15-N APGS-470-1800/58-20-N APGS-470-1800/58-25-N APGS-470-1800/58-30-N

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Material: Steel, Glass And PUF

Compact Non-pressure Solar Water Heater Color Steel Model



Tech Data:

1. Inner water tank:Stainless Steel, SUS304-2B, SS316L; Thickness, 0.31-0.51MM.

2. Outer water tank:Color Steel ;Thickness,0.40MM.

3. Insulation layer:Polyurethane foam;Thickness, 30-60MM.

4. Frame:Galvanized Steel; Angle, As your requirement.

5. Vacuum tubes:ALN/AIN-SS/CU layer;47-1500 OR 58-1800.

6. Tank capacity:70-400L.

7. Assistant Tank Heating Element, Mg Rod, Reflector and Controller can be provided.



Characteristic:

1. Operated completely automatic if connect with intelligent controller.

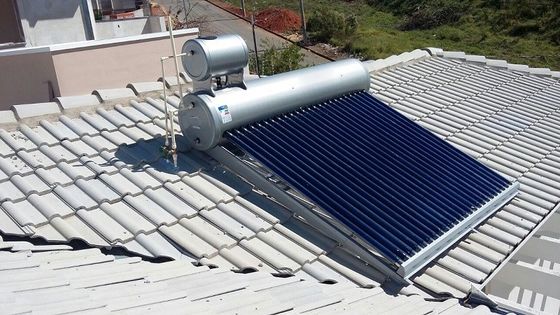

2. Installed both on flat and inclined roof, and can be used with a Electric Booster (heating element) as to provide hot water without sunshine.

4. Suitable for camping area, holiday residences.

5. Stable and reliable performance, well wind resistance.



Model:



Model of Theoretical Aperture Loading
Solar Water Heater Capacity Area 40HQ
APGS-470-1800/58-10-N 100L 0.930M2 163 No.
APGS-470-1800/58-15-N 150L 1.395M2 121 No.
APGS-470-1800/58-20-N 200L 1.861M2 94 No.
APGS-470-1800/58-25-N 250L 2.326M2 78 No.
APGS-470-1800/58-30-N 300L 2.791M2 66 No.
