Free-standing Bathroom Compact Pressure Solar Water Heater Galvanized Steel & SUS304-2B Series---Heat Pipe Model

I'm Online Chat Now

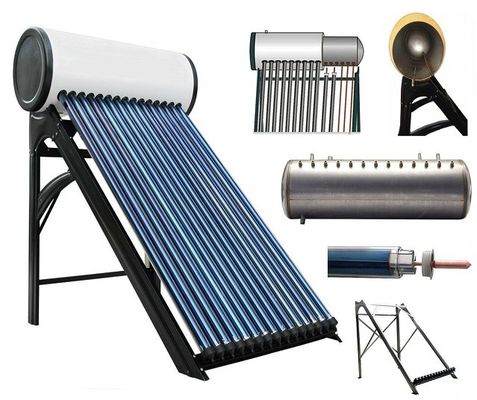

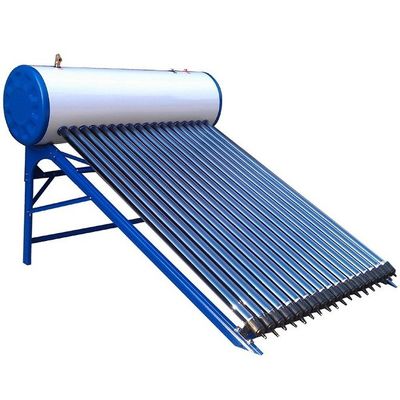

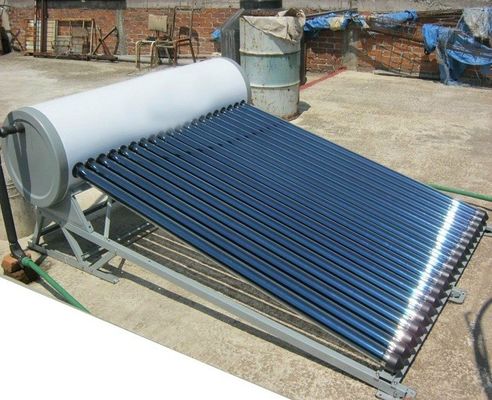

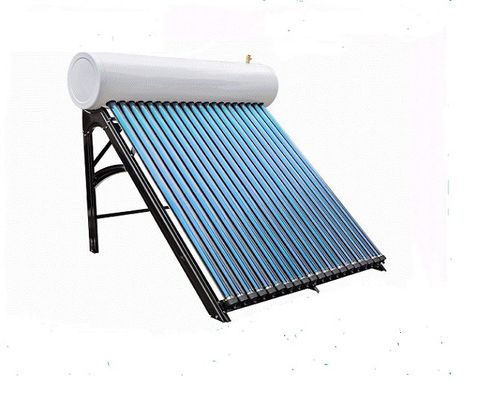

Free-standing Bathroom Compact Pressure Solar Water Heater Galvanized Steel & SUS304-2B Series---Heat Pipe Model

Free-standing Bathroom Compact Pressure Solar Water Heater Galvanized Steel & SUS304-2B Series---Heat Pipe Model
Free-standing Bathroom Compact Pressure Solar Water Heater Galvanized Steel & SUS304-2B Series---Heat Pipe Model Free-standing Bathroom Compact Pressure Solar Water Heater Galvanized Steel & SUS304-2B Series---Heat Pipe Model Free-standing Bathroom Compact Pressure Solar Water Heater Galvanized Steel & SUS304-2B Series---Heat Pipe Model Free-standing Bathroom Compact Pressure Solar Water Heater Galvanized Steel & SUS304-2B Series---Heat Pipe Model

Large Image :  Free-standing Bathroom Compact Pressure Solar Water Heater Galvanized Steel & SUS304-2B Series---Heat Pipe Model

Product Details:

Place of Origin: China
Brand Name: APS
Certification: CE
Model Number: APGS-470-1800/58-10-P APGS-470-1800/58-15-P APGS-470-1800/58-20-P APGS-470-1800/58-25-P APGS-470-1800/58-30-P

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: Standard Export Package
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description

Compact Heat Pipe Solar Water Heater Color Steel Series



Tech Data:

1. Inner water tank:Stainless Steel, SUS304-2B, SS316L,Enamel;Thickness,1.2-2.5MM.

2. Outer water tank: Color Steel;Thickness, 0.40MM.

3. Insulation layer: Polyurethane foam;Thickness, 30-60MM.

4. Frame:Galvanized Steel; Angle, As your requirement.

5. Vacuum tubes: ALN/AIN-SS/CU layer; 47-1500 OR 58-1800 with Heat Pipe.

6. Heating element, Mg Rod, Reflector and Controller can be provided.

7. Working Pressure :0.6Mpa ,Testing Pressure :1.0Mpa.



Characteristic:

1. Evacuated tube, aluminum fin and heat pipe arc closely integrated, realizing faster heat transfer and lower loss.

2. There is no water in tube, no filthy, anti-freeze, unlimited time of putting water and pressure operation, even there is tube broken, and the whole system still can work.

3. The system is same as tap water which would make the bathing very comfortable.

4. With the T/P valve, air vent valve makes the system work very stable and safety.

5. Can be used all year round in the cold climate.





Model:



Model of Theoretical Aperture Loading
Solar Water Heater Capacity Area 40HQ
APGS-470-1800/58-10-P 100L 0.930M2 155 No.
APGS-470-1800/58-15-P 150L 1.395M2 117 No.
APGS-470-1800/58-20-P 200L 1.861M2 91 No.
APGS-470-1800/58-25-P 250L 2.326M2 76 No.
APGS-470-1800/58-30-P 300L 2.791M2 64 No.
