Product Details:
Payment & Shipping Terms:
|
Material: | Steel, Glass And PUF |
---|

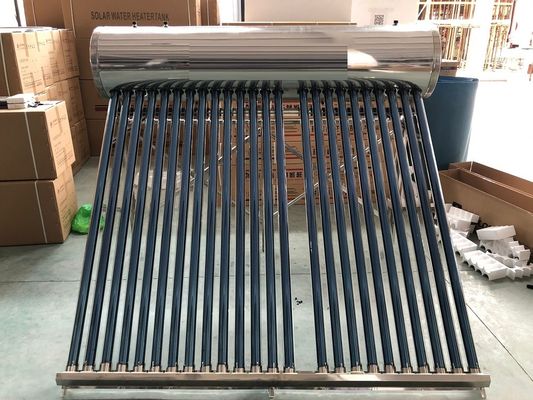

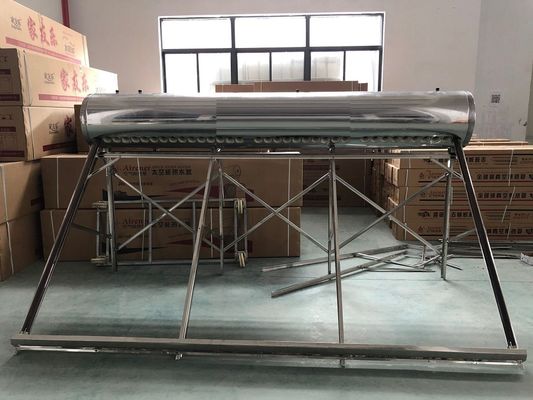

Compact 2/3 Inner Tank Solar Heater

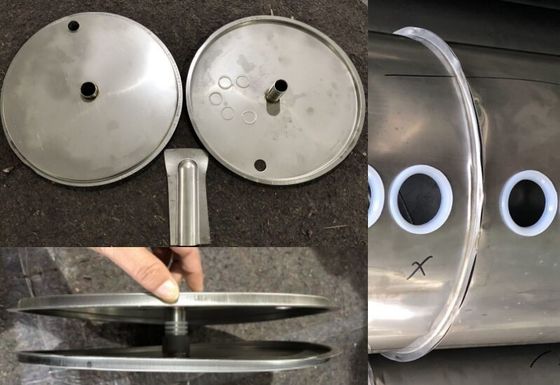

Notes: Tank will be devided two tanks, First tank is for pre-heated, Second tank is for using hot water; Tank will be devided three tanks, First and Second tank are for pre-heated, Third tank is for using hot water;
Tech Data:
1. Inner water tank:Stainless Steel, SUS304-2B, SS316L; Thickness, 0.31-0.51MM.
2. Outer water tank:Stainless steel;Thickness,0.40MM.
3. Insulation layer:Polyurethane foam;Thickness, 30-60MM.
4. Frame:Aluminum Alloy; Stainless Steel; Angle, As your requirement.
5. Vacuum tubes:ALN/AIN-SS/CU layer;47-1500 OR 58-1800.
6. Tank capacity:70-400L.
7. Assistant Tank Heating Element, Mg Rod, Reflector and Controller can be provided.
Characteristic:
1. Operated completely automatic if connect with intelligent controller.
2. Installed both on flat and inclined roof, and can be used with a Electric Booster (heating element) as to provide hot water without sunshine.
4. Suitable for camping area, holiday residences.
5. Stable and reliable performance, well wind resistance.
Model of | Model of | Theoretical | Aperture | Loading |
Solar Water Heater | Solar Water Heater | Capacity | Area | 40HQ |
APGS-470-1800/58-24-N-2 | APSS-470-1800/58-24-N-2 | 240L | 2.232M2 | 80 No. |
APGS-470-1800/58-30-N-2 | APSS-470-1800/58-30-N-2 | 300L | 2.791M2 | 66 No. |
APGS-470-1800/58-36-N-3 | APSS-470-1800/58-36-N-3 | 360L | 3.348M2 | 54 No. |
APGS-470-1800/58-42-N-3 | APSS-470-1800/58-42-N-3 | 420L | 3.907M2 | 47 No. |
APGS-470-1800/58-48-N-3 | APSS-470-1800/58-48-N-3 | 480L | 4.465M2 | 41 No. |
APGS-470-1800/58-52-N-3 | APSS-470-1800/58-52-N-3 | 520L | 4.837M2 | 38 No. |
